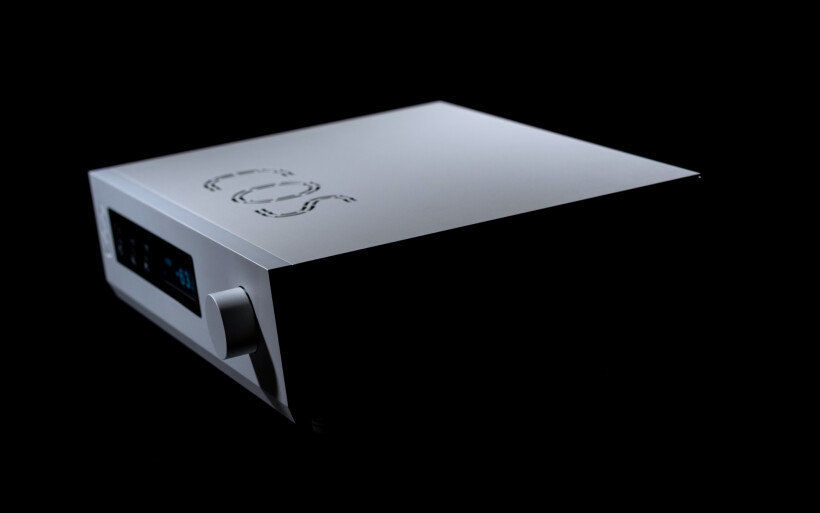

COS ENGINEERING - COS D10 DAC / Pre‑amp / Headphone Amp
C O S　D 1 0
D10 is a dream component for your beloved sonic pleasure. It is a DAC, a pre-amp, and a headphone amp, well built with streaming capability. Yes, the same spacious, supple and dynamically powerful sound that COS products have been offering. D10 is also a phono amp, one that delivers from your preferred vinyls luscious vibes.

Retail prices in the MY including TAX :
D10 without modules: RM22,000
Streaming module: RM4320
MM/MC Phono preamp module: RM4320
D10 complete with both modules: RM28,800

COS ALGORITHM, BUFFER and RE-CLOCKING
COS's proprietary algorithm with a linear-phase delay FIR filter can up-sample original data to 176.4K or 192K. D10 stores digital data in a one-second buffer before converting to analog signals, under the coordination of a crystal oscillator with a jitter precision less than 1ps and a dedicated re-clocking circuitry.

STREAMING (optional)
Stable and quality streaming is available, with or without a wire, for TiDAL, Spotify, Deezer, and Qobuz. Setup is easy with iOS and Android applications.

PHONO-AMPLIFIER (optional)
There are 5 loading resistors and 3 loading capacitors, all selectable, to accommodate phono cartridges of your choice. Other features include JFET input stage, on-board low-noise linear regulator, and handpicked components for RIAA curve matching and zero capacitor between audio signal paths. Extremely low in noise and distortion.

TWO-LAYER HOUSING
D10 has an NCT internal chassis and an aluminum exterior. This design provides a fortified frame that make possible lowered noise and minimized interference, plus a fine outlook.

COS ENGINEERING - COS D10 DAC / Pre‑amp / Headphone Amp

RM22,000.00 Regular Price
RM19,140.00Sale Price
Quantity

  • 🎧 COS D10 – DAC / Preamp / Headphone Amp / Streamer

    General

    • All-in-one unit: DAC + preamplifier + headphone amp

    • Optional: Streaming & Phono modules

    • Display: OLED

    • Weight: 10 kg

    • Dimensions: 415mm (W) × 100mm (H) × 280mm (D)

    • Power: 100120VAC or 200240VAC (Selectable)

    • Power Consumption: <50W (standby <0.5W)



    🔈 Analog Section (Preamp)

    • Analog Inputs: 1 × Balanced (XLR), 1 × Unbalanced (RCA)

    • Analog Outputs: 1 × Balanced (XLR), 1 × Unbalanced (RCA)

    • Max Output: 16V (balanced), 8V (unbalanced)

    • Input Impedance: 100K ohm

    • Output Impedance: 200 ohm

    • Residual Noise: <2μV (-114dBV)

    • Frequency Response: 20Hz – 20kHz ±0.1dB

    • THD+N: <0.001% (-100dB)

    • SNR: >110dB

    • Crosstalk: < -120dB

    • Volume Control: 140-step resistor ladder, 0.5dB per step



    🎧 Headphone Amp

    • Output: 6.3mm jack (front panel)

    • Max Output: 2V (unbalanced), 4V (balanced)

    • Output Impedance: 100 ohm (unbalanced), 200 ohm (balanced)

    • THD+N: <0.001% (-100dB)

    • SNR: >110dB

    • Frequency Response: 20Hz – 20kHz ±0.5dB



    • 💽 DAC Section

    • DAC Chip: 24-bit DAC ×2 (dual mono)

    • Digital Inputs:

      • USB Class 2.0 (Asynchronous)

      • SPDIF (RCA), AES/EBU (XLR), TosLink

      • I2S via HDMI

    • Supported Formats:

      • PCM up to 192kHz / 24-bit

      • DSD64 (all inputs), DSD256 via USB

    • Digital Filter: COS proprietary FIR (linear phase)



    • 🌐 Streaming Module (optional)

    • Streaming: DLNA 1.5, UPnP AV 1.0

    • ROON Ready

    • Services Supported: TIDAL, Qobuz, Deezer, Spotify

    • MQA Full Decoding

    • Connectivity:

      • Ethernet 10/100 Base-T

      • Wi-Fi 802.11 a/b/g/n/ac



    🎵 Optional Phono Module



    You're welcome to arrange a demo session with Begins Acoustic and experience COS Engineering firsthand

    • Gain: 40dB / 60dB selectable

    • Input Resistance: 47K ohm

    • Input Capacitance: 0 – 750pF

    • RIAA Accuracy: ±0.2dB (20Hz–20kHz)

    • Residual Noise: <30μV (40dB gain), <300μV (60dB gain)

    • THD+N: <0.001%

    • Crosstalk: < -70dB

    •

    • Jitter: <0.1 ps
